Documentation — QuantOTC

1. Open NinjaTrader Settings

Start NinjaTrader 8. From the top menu, select Tools, then select Settings.

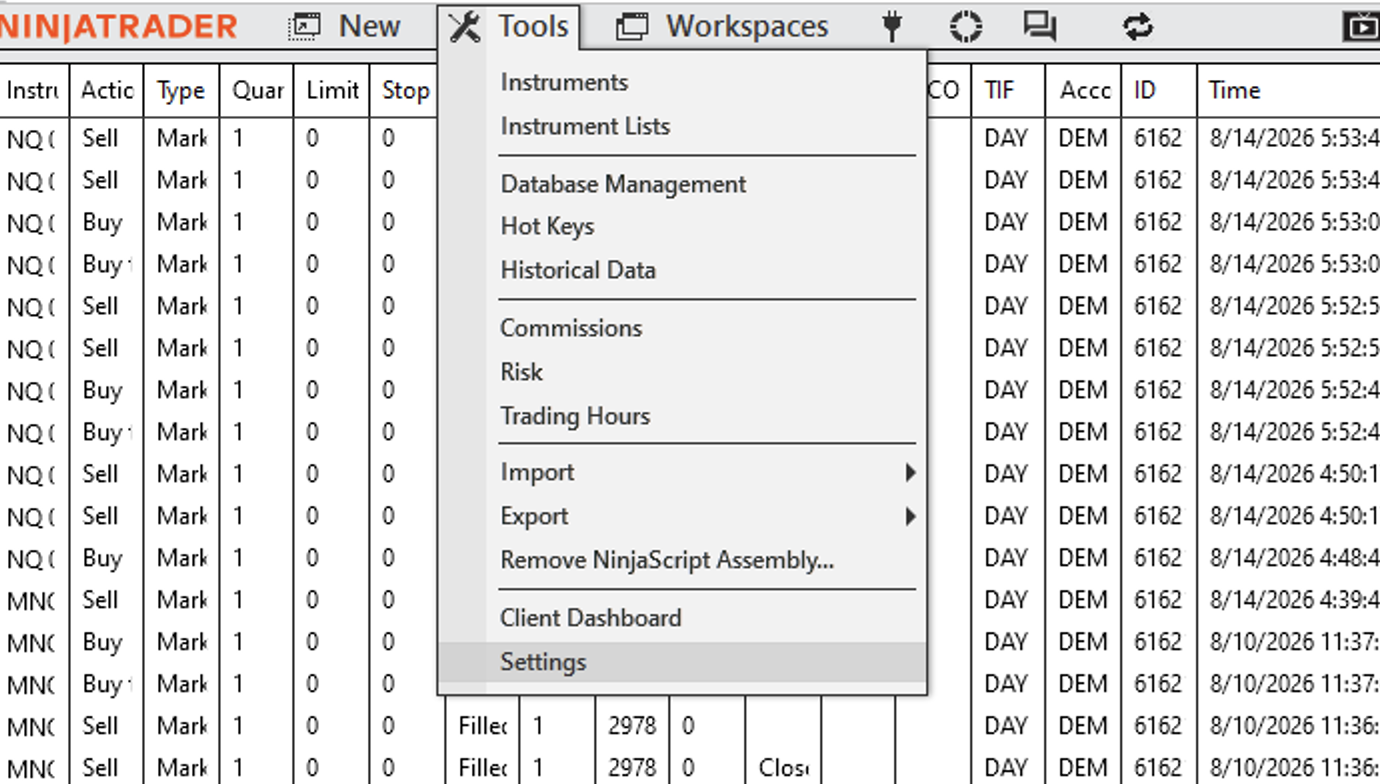

NinjaTrader Tools menu with Settings selected — Open Tools → Settings in NinjaTrader.

2. Enable the AT Interface

In the Settings window, select Automated trading interface from the Categories list. Under General, check AT Interface. Confirm the server port and choose the default account you want NinjaTrader to use.

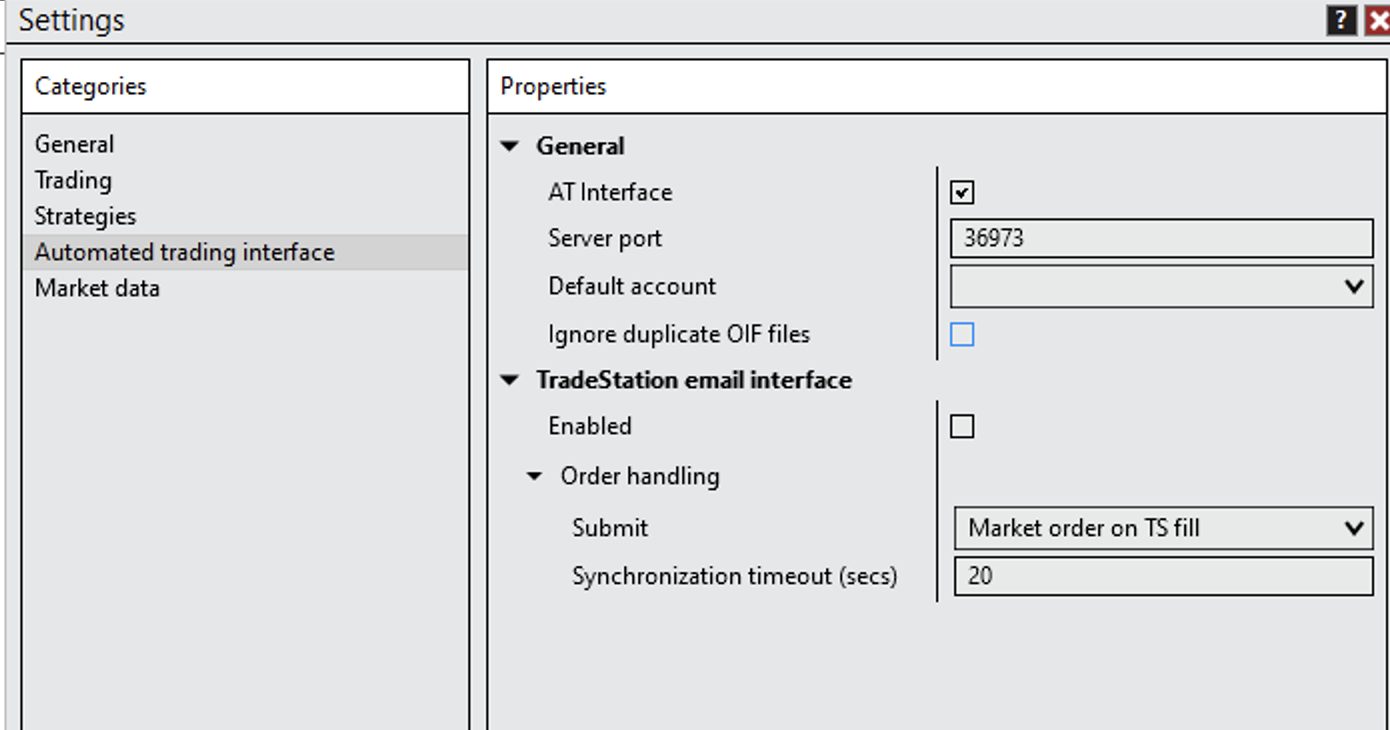

NinjaTrader Automated trading interface settings with AT Interface enabled — Enable AT Interface and confirm the account and port.

3. Restart NinjaTrader

Save the settings, close NinjaTrader completely, and start it again. Restarting ensures the AT Interface is active before the desktop bridge connects.

Leave NinjaTrader open with the AT Interface enabled.
Launch the QuantOTC Windows desktop application.
Paste the access key from the admin dashboard and select Connect.
Confirm the desktop status shows that it is connected before sending a TradingView alert.

4. Generate an access key

Sign in to the private dashboard. Administrators can create users and manage all keys; regular users can create one owned key. Copy the raw value into the desktop client. Keys created after the multi-user update can be recovered from the owner dashboard.

5. Configure TradingView

Copy the webhook URL belonging to that key into your TradingView alert. Send JSON with at least symbol and action. The client supports up to ten account1 through account10 fields, plus quantity, previousclose, limit_price, stop_price, oco_id, strategy, and strategy_id.

{
  "account1": "Sim101",
  "action": "{{strategy.order.action}}",
  "quantity": "{{strategy.position_size}}",
  "symbol": "ES SEP25",
  "previousclose": true
}

6. Keep the desktop bridge running

The client connects outbound over HTTPS/WSS and writes OIF files to the NinjaTrader incoming directory. Keep both NinjaTrader and the QuantOTC desktop app running while you want to receive alerts.

Up to 10 NinjaTrader accounts

Add account names as account1 through account10. Names must match NinjaTrader exactly. Leave unused account fields empty.

Key security

Access keys are hashed for authentication and encrypted for owner recovery. Revoke a key immediately if it is exposed. Rotating a webhook URL invalidates the old URL.

Configure NinjaTrader before running QuantOTC
